The products from sensor Communications covers many areas s.a. Wireless sensors, passive RFID and Active RFID. However they are all build from the same base giving that they are in many cases compatible with each other. For example, our active RFID system is a subsection of the Wireless sensor system. The wireless RFID-reader is used with the base station fom the wireless sensor system. Below is an overview of the available products today. However please contact us if you need something else!
If not otherwise stated all products have the following specification:
- Protection IP54
- Frequency 2.4GHz ISM band
- Encryption AES
- Temperature range -40ºC to +85ºC
SENSOR TAGS

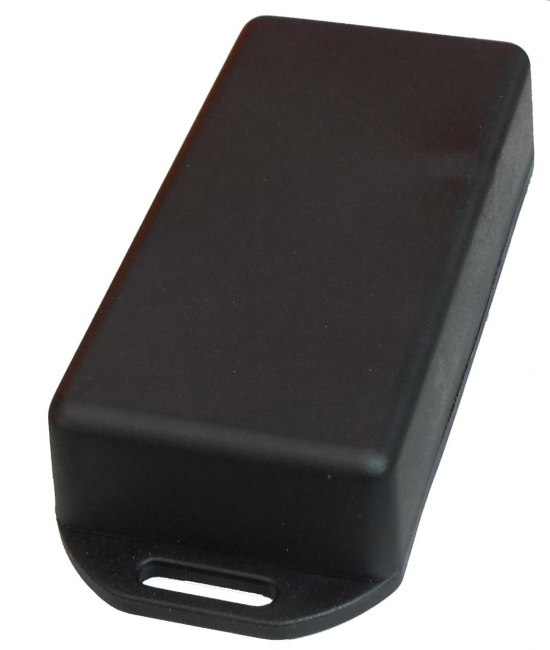

ID TAG SC200-ID
The Tag sends a beacon with a unique serial number.
Usage: warehouse inventory or automatic gate openers.
ABS 80x40x20mm Black
Humidity TAG SC200-H
Measures air humidity and temperature
Battery life time: 5-10 years
Accuracy: ±3%RH, ±0.4 ºC at 25 ºC
Usage: Humidity supervision in storage areas
ABS 80x40x20mm Black

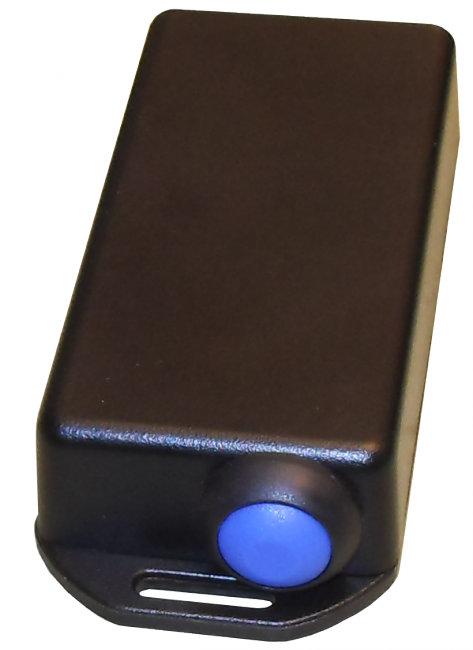

Button TAG SC200-B
Similar to SC200-FOB but with one big button.
Usage: Perfect for opening gates etc.
ABS 80x40x20mm Black
BASE STATIONS

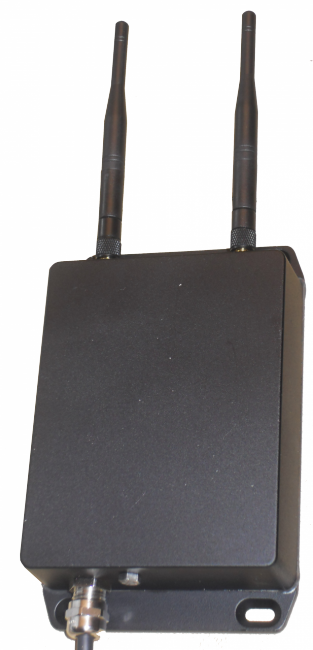

Base station SC100-R
The base station (receiver) for all Sensor Tags above as well as for the passive RFID reader SC300-RFID.
Power supply: 5V or 9-30V DC
Many different serial interfaces available s.a. RS232, RS422, Clock/Data, USB, GSM, CAN
Enclosure: metallic, black, 120x94x35mm (main body)
Protection: very robust and weather proof IP67
PASSIVE RFID
Passive RFID Reader SC300-READ
Reader for ISO14443A and Mifare TAGs.
Embedded processor and memory for user specific application software.
Different interfaces available s.a RS232, RS422, Clock/data, USB, Wireless
Tag reading range: 5cm
Radio range: 20-200m depending on environment and antenna.
Frequency: 13.56MHz
Enclosure: Polycarbonate102x84x43mm (main body)
Protection: Very robust and weather proof casing
(IP67)

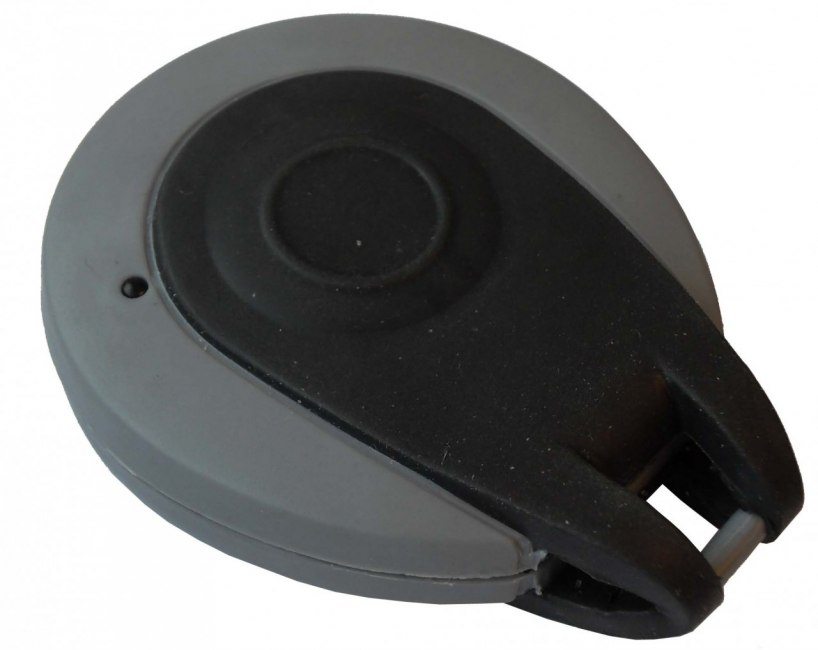

KeyFob TAG SC200-FOB-X
A Keyfob with one or three buttons.
Very rugged design with rubberized surface.
Battery life time: 1- 8 years.
Usage: Gate openers, activating/deactivation alarm mode.
ABS 55x44x15mm Grey/black
Motion TAG SC200-A
The Tag contains an accelerometer that senses TAG movement and vibrations.
Battery life time: 5-20 years
Range: ±2g, ±4g, ±8g
Usage: Theft supervision, alert of motion
ABS 80x40x20mm Black
Temperature TAG SC200-T
Senses and logs current temperature.
Battery life time: 5-20 years
Accuracy: 0.2 ºC at 25 ºC, 1 ºC from -10 to +85 ºC, 3 ºC from -40ºC to -10ºC
ABS 80x40x20mm Black

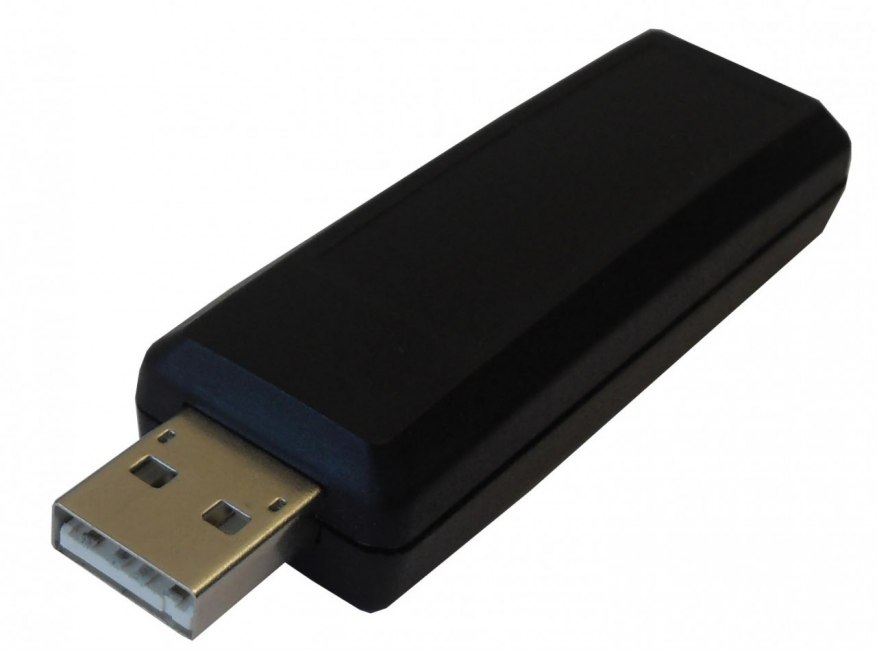

Base station USB-dongle SC100-USB
A base station for all Sensor Tags above as well as for the passive RFID reader SC300-RFID.

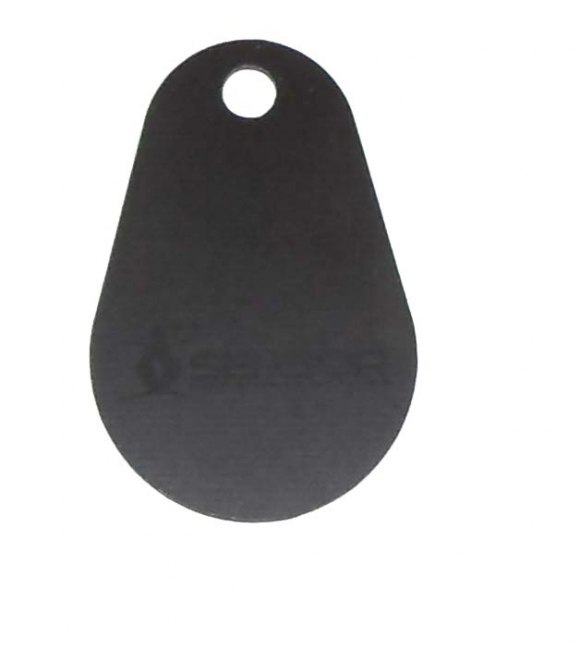

Passive RFID TAG SC300-TAG-EPOXY
Keyfob housing
The Tag is made of epoxy and is one of the most robust keyfobs on the market.
LOGO on Tag on request
Passive RFID TAG SC300-TAG-FO1
Keyfob housing
The Tag is completely filled with plastic making it
very robust.
Comes in different colours and with LOGO on Tag on
request
